TRUSCO Air Coil Hose Urethane Coil Hose with Resin Coupling 4.0m TUHJ-5 1 Piece

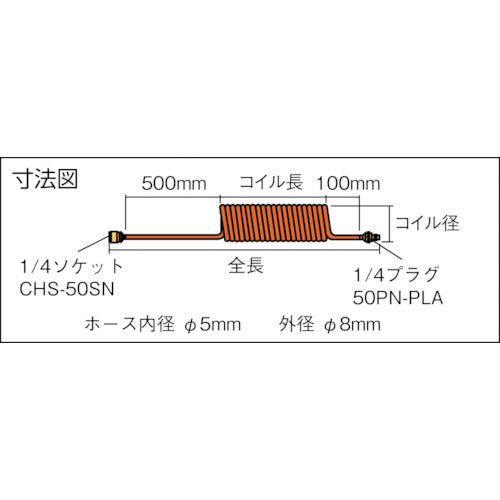

Catalog number: TUHJ-5 Features: ● Even if it comes into contact with tools or equipment, the resin coupling will not scratch it. ● It is resistant to bending and has excellent abrasion resistance. ● It has excellent flexibility, elasticity, and stretchability. It is also strong. ● The handle part is straight, so a hand hose is not required. Specifications: ● Coil diameter (mm): 42 ● Color: Orange ● Hose inner diameter x outer diameter (mm): 5 x 8 ● Usage range (m): 4 ● Total length (mm): 1000 ● Coil length (mm): 400 ● Outer diameter (mm): 8 ● Inner diameter (mm): 5 ● Fluid used: Air ● Dimensions (mm) B: 500 ● Fluid temperature: -5 to 60 ° C (no freezing) ● Operating pressure: 0.8 MPa ● Connection joint: 1/4 resin coupling Material / Finish: ● Polyurethane Caution: ● Do not use in places where the connection fittings are subjected to impact or may get caught on something (such as floor steps or seams of checkered steel plates). Doing so may result in unexpected accidents such as the connection fittings coming loose. ● When separating connection fittings, hold them in your hands. ● After connecting the connection fittings, pull them gently from both sides to make sure they do not come loose.
