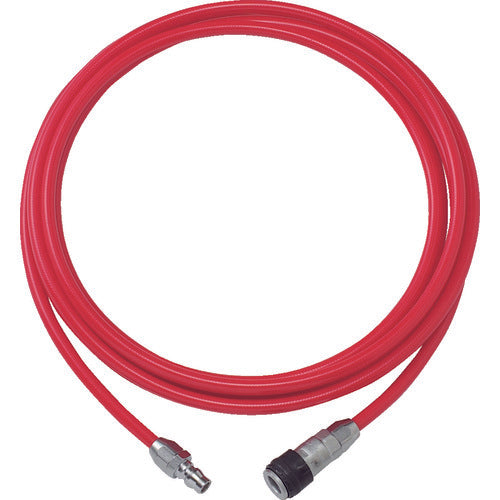

TRUSCO Air Blade Hose, Urethane Blade Tube, Inner Diameter 6.5 x Outer Diameter 10 mm, Total Length 5 m, Coupling Included, Red, TOP-6.5-5, 1 Roll

Catalog number: TOP-6.5-5 Features: ●Compared to rubber hoses, it is about 1/3 to 1/5 lighter. ●Excellent oil resistance and pressure resistance, and excellent flexibility at low temperatures (-5°C). ●Compatible with general couplings. Specifications: ●Color: Red ●Outer diameter (mm): 10 ●Inner diameter (mm): 6.5 ●Total length (m): 5 ●Thickness (mm): 1.75 ●Connection joint: TL200-65SN/65PN ●Allowable bending radius: (room temperature) 50mm ●Fluid used: Air ●Fluid temperature: -5 to 60°C (no freezing) ●Operating pressure: 1.5MPa Material/Finish: ●Polyurethane Caution: ●Do not use in places where the connecting fittings may be subjected to impact or get caught on something (such as floor steps or seams in checkered steel plates). This may cause unexpected accidents such as the connecting fittings flying out. ●When separating the connecting fittings, hold the fittings in your hand. *After connecting the connecting fittings, gently pull them from both sides to make sure they do not come loose. *Please use couplings designed specifically for blade hoses. Using other couplings may damage the hose. *The normal temperature environment for the operating pressure is approximately 20°C.
