TRUSCO Air Blade Hose Urethane Blade Tube 6.5 x 10 10m Free Angle J Included TOP-6.5-10F 1 Roll

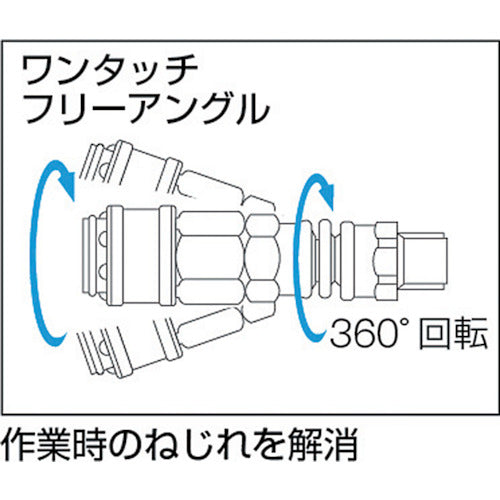

Catalog number: TOP-6.5-10F Features: ●360° rotation reduces strain on the wrist and eliminates hose twisting. ●Comes with a free angle joint. ●Easy to connect with one touch. ●Compatible with general couplings. Applications: ●Air pressure, instrumentation control equipment, etc. Specifications: ●Color: Red ●Outer diameter (mm): 10 ●Inner diameter (mm): 6.5 ●Total length (m): 10 ●Thickness (mm): 1.75 ●Connection joint: C4P-6.5H/3FAS-6.5H-CHS ●Allowable bending radius: (room temperature) 60mm ●Fluid used: Air ●Fluid temperature: -5 to 60°C (no freezing) ●Operating pressure: 1.5MPa Material/Finish: ●Polyurethane Caution: ●Do not use in places where the connecting fittings may be subjected to impact or get caught on something (such as floor steps or seams in checkered steel plates). This may cause unexpected accidents such as the connecting fittings flying out. ● When separating connecting fittings, hold them with your hands. ● After connecting the connecting fittings, gently pull them from both sides to make sure they do not come loose. ● Use couplings designed specifically for blade hoses. Using other couplings may damage the hose. ● The normal temperature environment for the operating pressure is approximately 20°C.
