TRUSCO Extractor Spiral Type for 35.0-44.0mm EX-808 1 piece

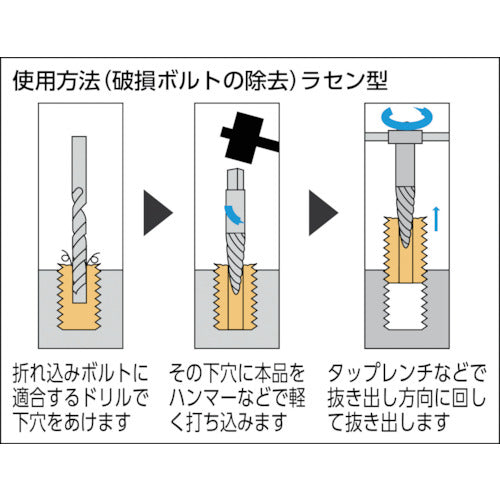

Catalog number: EX-808 Features: ●Used to remove broken bolts, pipes, etc. ●Can remove bolts broken inside the screw hole without damaging the screw hole. ●Can easily remove small screws that were difficult to remove when the plus or minus grooves on the head of the small screw are crushed. ●Can easily remove bolts that have crushed head corners or broken off halfway by drilling a pilot hole. Applications: ●For removing broken bolts and pipes. Specifications: ●Bolt thread used (mm): 35.0-44.0 ●Pipe size used: 3/4 ●Total length (mm): 110 ●Drill pilot hole size used (mm): 20.5 ●Tip diameter (mm): 19.0 ●Original diameter (mm): 26.0 ●Compatible tap handle: TH-32 ●Spiral type (for right-hand bolt threads only) Material/Finish: ●Medium carbon steel (S45C) Caution: ●Cannot be used with hardened bolts or stainless steel bolts. After drilling the pilot holes, use lubricant on the broken screw and allow it to penetrate.
