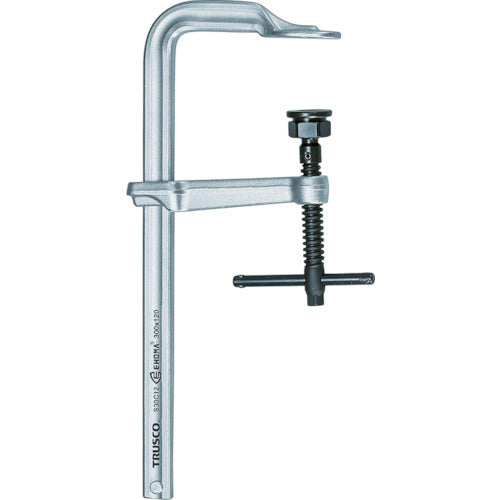

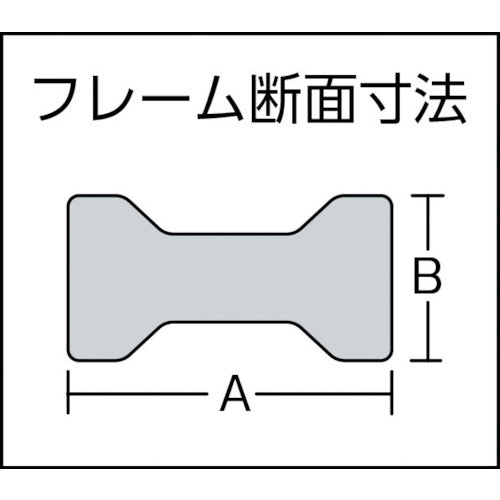

Catalogue number: S40C12 Features: ●The shaft head is hexagonal and can be tightened with a wrench, allowing for more secure tightening. ●The maximum tightening pressure when clamping 150 mm is 9.8 kN. ●The heavy-duty adapter can be tightened at an angle of up to approximately 35°. Specifications: ●Total length (mm): 520 ●Maximum opening (mm): 400 ●Depth (mm): 120 ●Frame dimension (mm) A: 27 ●Frame dimension (mm) B: 13 ●Standard mounting pad: SC-FP ●Screw head hexagonal width: 19 mm Material/Finish: ●Special steel
