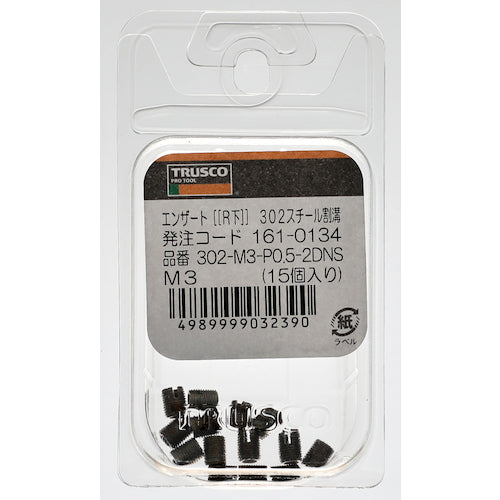

TRUSCO Enzat [[R Down]] 302 Steel Split Groove M3 P0.5 L6 302-M3-P0.5-2DNS 1 PK

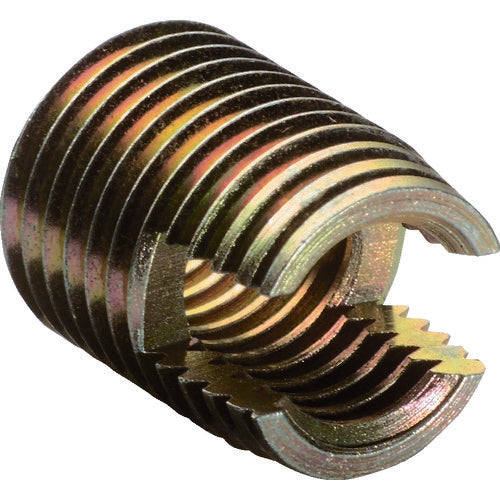

Catalog number: 302-M3-P0.5-2DNS Features: ● Enzat [R] is an insert nut with good workability that can be used for resin and aluminum where direct tapping is likely to cause female thread destruction. ● It has a cutting edge with a split groove or three holes, and cuts the mating material with its own blade, so no pre-tapping is required. ● By reinforcing the female thread with Enzat [R], it is possible to make parts from aluminum or resin, which helps to reduce weight. ● Enzat [R] supports the force applied to the internal thread with an external thread that is one size larger, so it can withstand higher forces than direct tapping. ● Reinforcement using Enzat [R] is limited by the shear strength specific to the mating material or the mechanical strength of the bolt used. ● Type 302 (split groove type) is a general-purpose type that can be used for aluminum alloys with easy cutting properties and resins with high plasticity. Applications: ● For reinforcing and preventing damage to internal threads and strengthening the fastening of male threads. Specifications: ●Compatible bolt thread: M3 ●Counterbore diameter (mm): Resin 4.6-4.7, light metal 4.7-4.8 ●Internal thread pitch (mm): 0.50 ●Length (mm): 6 ●External thread (mm): 5 ●Slotted groove type Material/Finish: ●Steel SUM22L Note: ●Enzat [R below] is a registered trademark of KKV Corporation.
