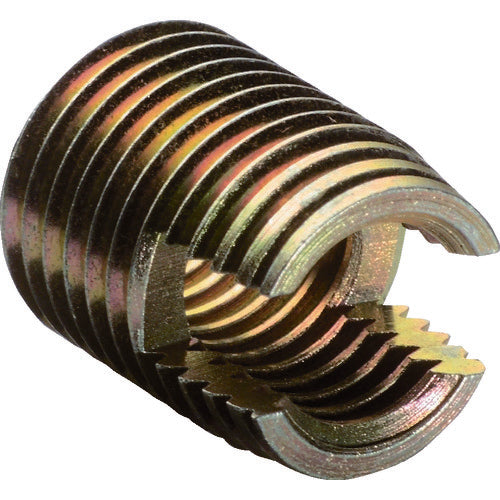

TRUSCO Enzat [[R Down]] 302 Steel Split Groove M4 P0.7 L8 302-M4-P0.7-2DNS 1 PK

Catalog number: 302-M4-P0.7-2DNS Features: ● Enzat [R] is an insert nut with good workability that can be used for resin and aluminum where direct tapping is likely to cause female thread destruction. ● It has a cutting edge with a split groove or three holes, and cuts the mating material with its own blade, so no pre-tapping is required. ● By reinforcing the female thread with Enzat [R], it is possible to make parts from aluminum or resin, which helps to reduce weight. ● Enzat [R] supports the force applied to the internal thread with an external thread that is one size larger, so it can withstand higher forces than direct tapping. ● Reinforcement using Enzat [R] is limited by the shear strength specific to the mating material or the mechanical strength of the bolt used. ● Type 302 (split groove type) is a general-purpose type that can be used for aluminum alloys with easy cutting properties and highly plastic resins. Applications: ● For reinforcing and preventing damage to female threads and strengthening the fastening of male threads. Specifications: ●Compatible bolt thread: M 4 ●Counterbore diameter (mm): Resin 5.9-6.1, light metal 6.1-6.2 ●Internal thread pitch (mm): 0.70 ●Length (mm): 8 ●External thread (mm): 6.5 ●Slotted groove type Material/Finish: ●Steel SUM22L Note: ●Enzat [R below] is a registered trademark of KKV Corporation.
