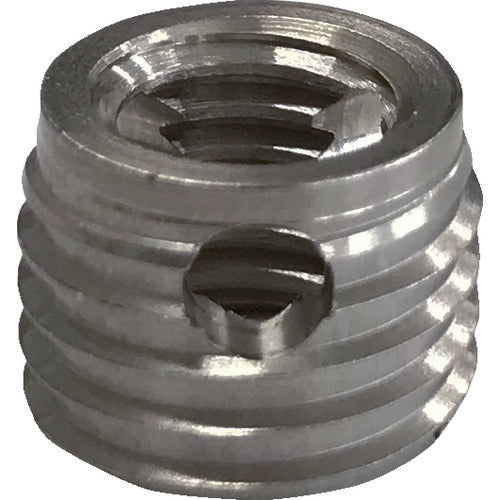

TRUSCO Enzat [[R Down]] 307SUS 3-hole short size M6 P1.0 L8 307SUS-M6-P1.0-1.3DNS 1 PK

Catalog number: 307SUS-M6-P1.0-1.3DNS Features: ● Enzat [R] is an insert nut with good workability that can be used for resin and aluminum where direct tapping is likely to cause female thread destruction. ● It has a cutting edge with a split groove or three holes, and cuts the mating material with its own blade, so no pre-tapping is required. ● By reinforcing the female thread with Enzat [R], it is possible to make parts from aluminum or resin, which helps to reduce weight. ● Enzat [R] supports the force applied to the internal thread with an external thread that is one size larger, so it can withstand higher forces than direct tapping. ● Reinforcement using Enzat [R] is limited by the inherent shear strength of the mating material or the mechanical strength of the bolt used. ● Type 307 (three-hole type) is suitable for mild steel, high-strength aluminum alloys, and hard resins that are prone to cracking. Applications: ● For reinforcing and preventing damage to internal threads and strengthening the fastening of male threads. Specifications: * Suitable bolt thread: M6 * Pilot hole diameter (mm): Resin 9.3-9.5, Light metal 9.4-9.6 * Internal thread pitch (mm): 1.0 * Length (mm): 8 * External thread (mm): 10 * Three holes, short size Material/Finish: * Stainless steel SUS303 Note: * Enzat [[R below]] is a registered trademark of KKV Corporation. * It may not be usable for ultra-high strength forged aluminum.
