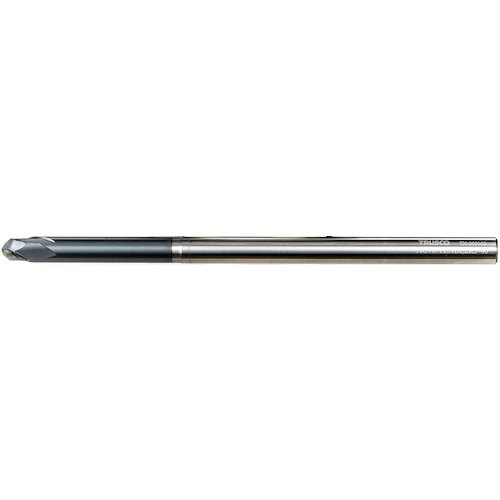

TRUSCO End Mill Carbide Long Neck Ball End Mill (2 Blades) R2X14 AC40-TLNBE2R2-14 1 Piece

Catalog number: AC40-TLNBE2R2-14 Features: ●The original deep rib end mill now features an AlCrN coating that is compatible with a wide range of work materials. ●This is a neck relief type that is suitable for narrow and deep machining. ●A wide lineup of products can be used for all types of machining. Applications: ●Work materials: carbon steel, alloy steel, stainless steel, tempered steel, cast iron, copper, aluminum alloy, resin. ●Cutting of molds and parts. Specifications: ●Ball radius (mm): 2 ●Neck length (mm): 14 ●Blade length (mm): 3 ●Total length (mm): 50 ●Shank diameter (mm): 6 ●Number of teeth (pieces): 2 ●Number of teeth: 2 ●Neck diameter (mm): 3.85 ●Outer diameter (mm): 4 ●Neck cut-off (°): 10 Material/Finish: ●Ultrafine grain carbide alloy ●Work materials: carbon steel, alloy steel, stainless steel, tempered steel, cast iron, copper, aluminum alloy, resin. Note: ●The shank taper angle is a guideline. ●If interference with the workpiece is required, be sure to measure and confirm. ●Be careful of contact between the shank and the workpiece. ●To prevent vibration of the cutting edge, do not chuck the shank if it has coating on it.
