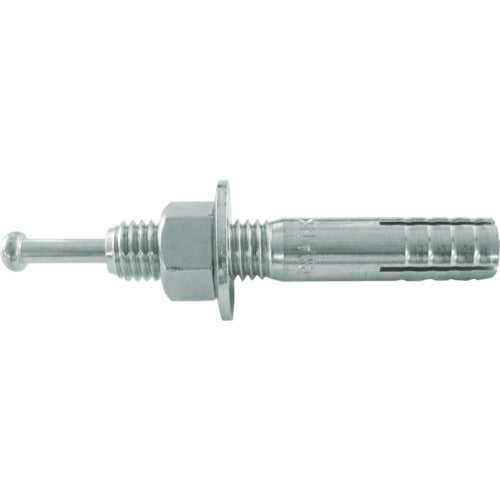

TRUSCO All Anchor C Type Steel M10X80 8 Pieces (Concrete Anchor/Core Rod Drive-in Type) C-1080BT 1 PK

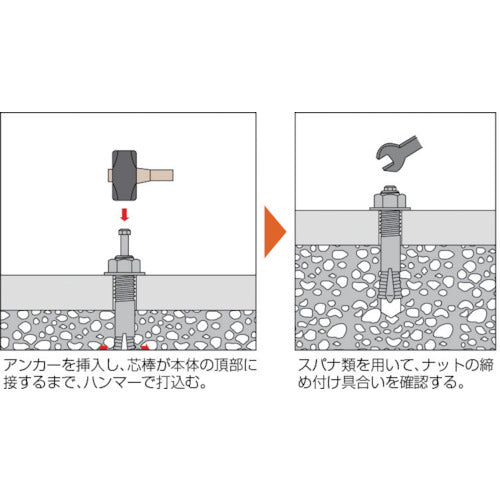

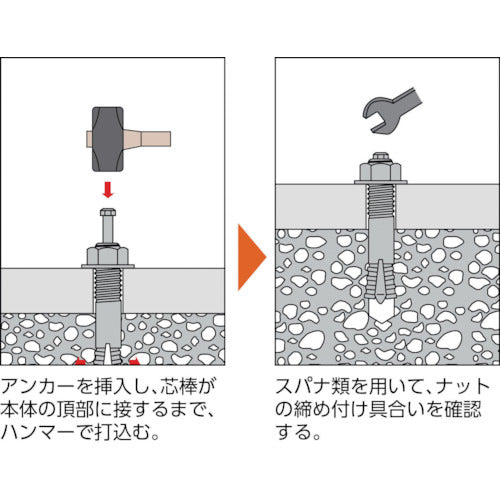

Catalog number: C-1080BT Features: ● Installation is as simple as driving in the core rod, so you can tell when installation is complete at a glance. ● The body and threaded part have the same diameter, so you can drill a small hole in the concrete. ● Can be installed directly from above the object to be attached. ● Nut tightening type, so the object to be attached can be removed. Applications: ● For construction work, civil engineering work, electrical work, mechanical equipment work, etc. Specifications: ● Screw size: M10 ● Total length (mm): 80 ● Screw length (mm): 25 ● Maximum thickness of object to be attached (mm): 26 ● Pilot hole diameter (mm): 10.5 ● Maximum tensile load (kN): 10.2 ● Embedded depth (mm): 40 ● Packed (up to total length 80 mm) ● Bag (C-1680BT, total length 90 mm and up) Material/Finish: ● Steel ● Surface treatment: Trivalent chromate treatment Note: ● Maximum tensile load is the value when the concrete strength Fc = 21 N/[[MM2]].
