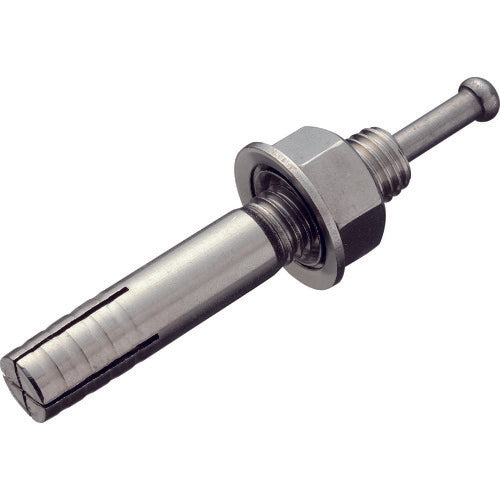

TRUSCO All Anchor SC Type Stainless Steel M8X40 8 Pieces (Concrete Anchor/Core Rod Drive-in Type) SC-840BT 1 PK

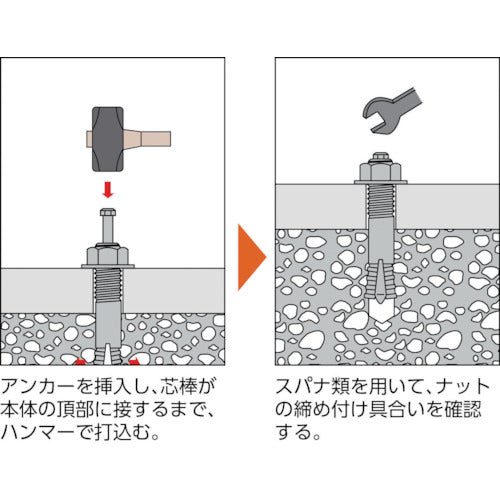

Catalog number: SC-840BT Features: ● Installation is as simple as driving in the core rod, so you can tell when installation is complete at a glance. ● The body and threaded part have the same diameter, so you can drill a small hole in the concrete. ● Can be installed directly from above the object to be attached. ● Nut tightening type, so the object to be attached can be removed. Applications: ● For construction and facility work where rust prevention is desired. Specifications: ● Screw size: M8 ● Total length (mm): 40 ● Screw length (mm): 15 ● Maximum thickness of object to be attached (mm): 5 ● Pilot hole diameter (mm): 8.5 ● Maximum tensile load (kN): 4.9 ● Embedded depth (mm): 25 ● Packed (up to total length 80mm) ● Bag (C-1680BT, total length 90mm and up) Material/Finish: ● Stainless steel (SUS304 series) Note: ● Maximum tensile load is the value when the concrete strength Fc = 21N/[[MM2]].
