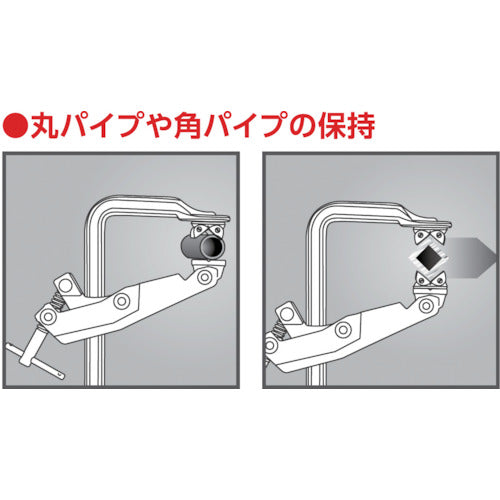

Catalogue number: CTL-100 Features: ●The tightening handle is attached to the outside of the rail, so it can be used in narrow spaces. ●By replacing the arm section and attaching the separately sold attachment CTD, you can work to spread it outward. ●By attaching the separately sold pad CTV, you can hold pipes, angles, etc. ●For steel and sheet metal. Specifications: ●Total length (mm): 1135 ●Maximum opening (mm): 1000 ●Depth (mm): 100 ●Frame dimension (mm) A: 27 ●Frame dimension (mm) B: 13 ●Tightening force (kN): 6.86 Material/Finish: ●Cold-rolled steel
