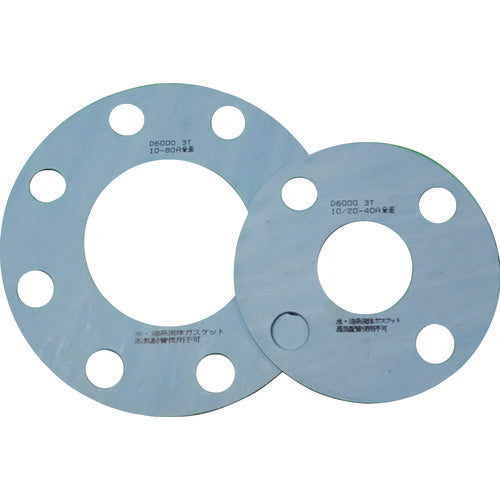

TRUSCO Gasket Flange Full Packing 10K 100A 3T D6000-10K-100A-3T-FF 1 Piece

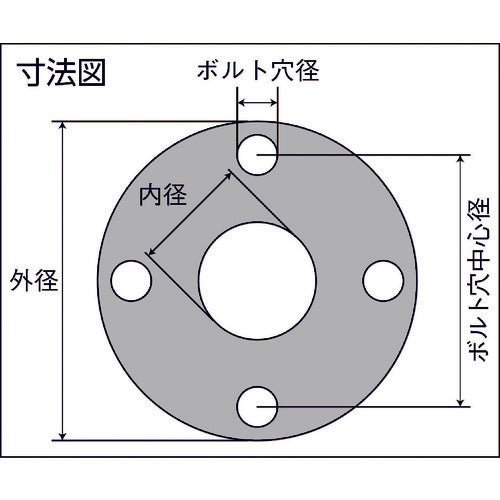

Catalog number: D6000-10K-100A-3T-FF Features: ●Sheet gasket made by mixing a small amount of filler with a synthetic rubber binder with excellent oil resistance on high-quality non-asbestos fibers and rolling and vulcanizing it. ●Non-asbestos joint sheet widely used for general piping for water-based and oil-based fluids. ●Passed official testing for JIS S 3200-7, the suitability standard for plumbing equipment. Applications: ●For packing of water-based fluids (water, hot water), oil-based fluids (thermal oil, lubricating oil, fuel oil), etc. ●As a gasket for pipe flanges and equipment in various industries. Specifications: ●Nominal diameter A: 100 ●Nominal diameter B: 4 ●Inner diameter (mm): 115 ●Outer diameter (mm): 210 ●Thickness (mm): 3.0 ●Operating pressure (K): 10 ●Bolt hole center diameter (mm): 175 ●Number of bolt holes (pcs): 8 ●Bolt hole diameter (mm): 19 ●Operating temperature range: -100 to 150°C Material/Finish: ●Inorganic fiber ●Aramid fiber ●Oil-resistant synthetic rubber
