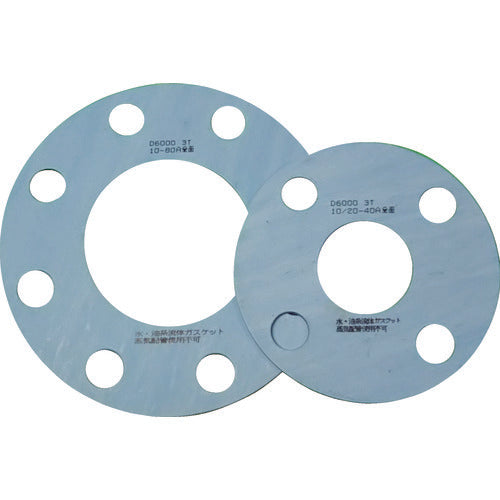

TRUSCO Gasket Flange Full Face Packing 10K 125A 1.5T D6000-10K-125A-1.5T-FF 1 Piece

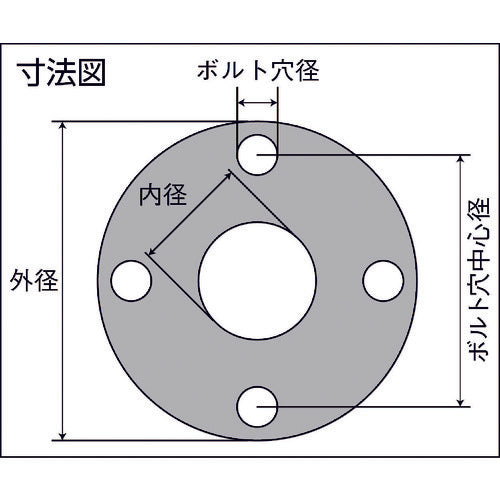

Catalog number: D6000-10K-125A-1.5T-FF Features: ●Sheet gasket made by mixing a small amount of filler with a synthetic rubber binder with excellent oil resistance on high-quality non-asbestos fibers and rolling and vulcanizing it. ●Non-asbestos joint sheet widely used in general piping for water-based and oil-based fluids. ●Passed official testing for JIS S 3200-7, the suitability standard for plumbing equipment. Applications: ●For packing of water-based fluids (water, hot water), oil-based fluids (thermal oil, lubricating oil, fuel oil), etc. ●As a gasket for pipe flanges and equipment in various industries. Specifications: ●Nominal diameter A: 125 ●Nominal diameter B: 5 ●Inner diameter (mm): 141 ●Outer diameter (mm): 250 ●Thickness (mm): 1.5 ●Operating pressure (K): 10 ●Bolt hole center diameter (mm): 210 ●Number of bolt holes (pcs): 8 ●Bolt hole diameter (mm): 23 ●Operating temperature range: -100 to 150°C Material/Finish: ●Inorganic fiber ●Aramid fiber ●Oil-resistant synthetic rubber
