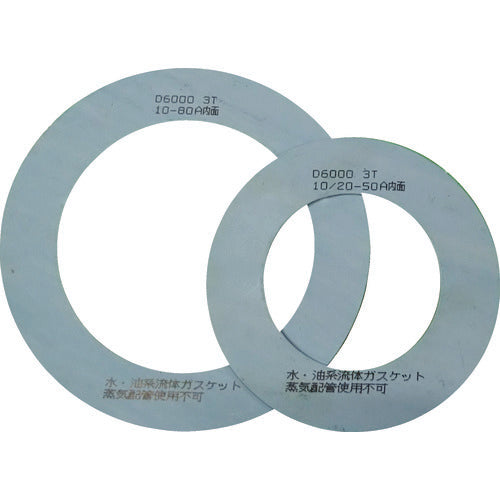

TRUSCO Gasket Flange Inner Packing 10K 100A 3T D6000-10K-100A-3T-RF 1 Piece

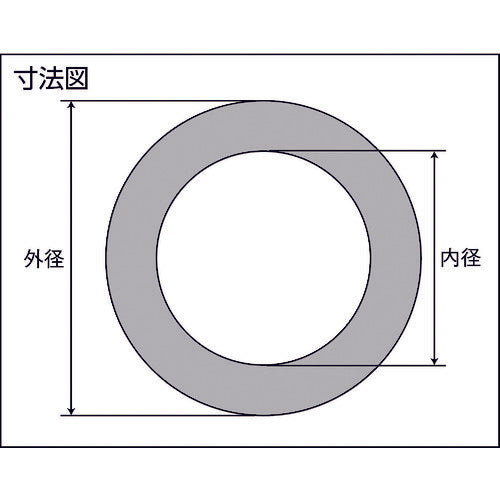

Catalog number: D6000-10K-100A-3T-RF Features: ● Sheet gasket made by mixing a small amount of filler with a synthetic rubber binder with excellent oil resistance on high-quality non-asbestos fibers and rolling and vulcanizing it. ● Non-asbestos joint sheet widely used in general piping for water-based and oil-based fluids. ● Passed official tests for JIS S 3200-7, the suitability standard for plumbing equipment. Applications: ● For packing of water-based fluids (water, hot water), oil-based fluids (thermal oil, lubricating oil, fuel oil), etc. Specifications: ● Nominal diameter A: 100 ● Nominal diameter B: 4 ● Inner diameter (mm): 115 ● Outer diameter (mm): 159 ● Thickness (mm): 3.0 ● Operating pressure (K): 10 ● Operating temperature range: -100 to 150°C Materials/Finish: ● Inorganic fiber ● Aramid fiber ● Oil-resistant synthetic rubber
