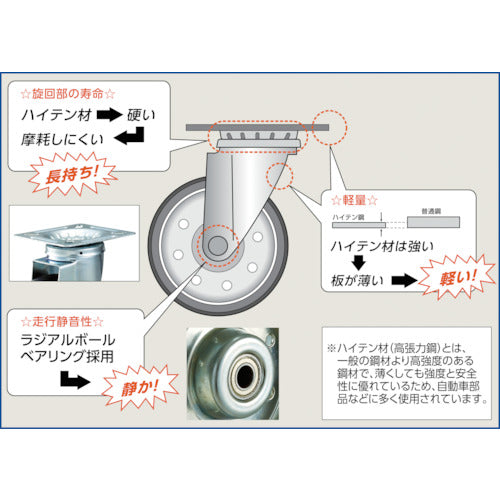

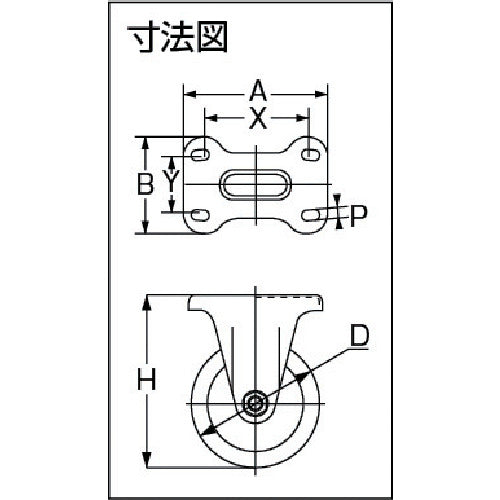

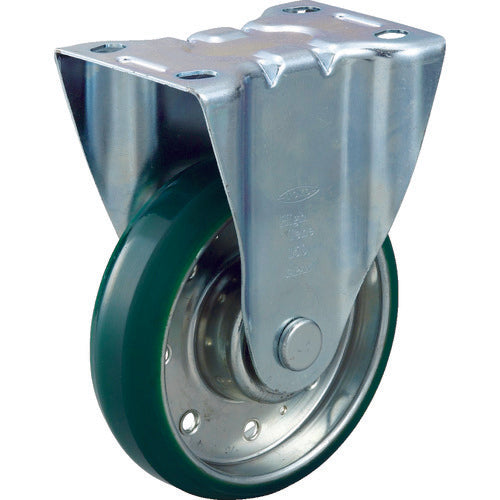

Catalogue number: HTTUK-100 Features: ●The durability of the rotating part, which is prone to wear, has been increased by more than four times by using high-tensile material. (Compared to our previous products) ●The use of radial bearings has improved noise reduction. ●The use of high-tensile material has reduced weight. Uses: ●For mounting on transport carts, etc. Specifications: ●Wheel diameter D (mm): 100 ●Type: Fixed type ●Allowable load (daN): 171 ●Allowable load (kgf): 174 ●Wheel width (mm): 32 ●Mounting height H (mm): 144 ●Mounting seat A (mm): 115 ●Mounting seat B (mm): 80 ●Mounting pitch X (mm): 80-90 ●Mounting pitch Y (mm): 45-50 ●Mounting hole diameter P (mm): 11 ●Fixed type ●Plate type ●Radial ball bearing included Material/Finish: ●Metal fittings: High-tensile material (steel) ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: High-tensile material (steel) wheels, urethane (green)
