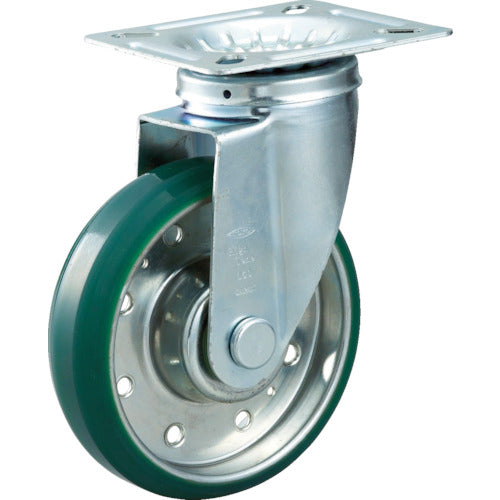

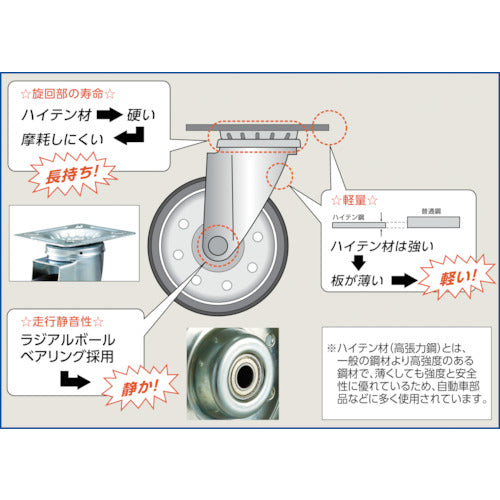

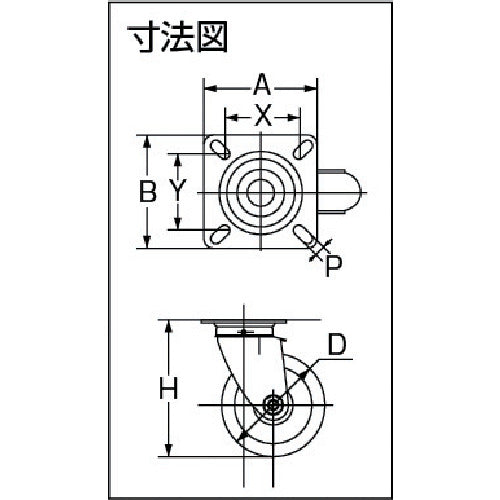

Catalog number: HTTUJ-130 Features: *The durability of the rotating parts, which are subject to wear, has increased by more than four times by using high-tensile materials. (Compared to our conventional products) *The use of radial bearings has improved noise reduction. *The use of high-tensile materials has reduced the weight. Uses: ● For mounting on transport carts, etc. Specifications: ● Wheel diameter D (mm): 130 ● Type: Free-swivel ● Allowable load (daN): 250 ● Allowable load (kgf): 255 ● Wheel width (mm): 38 ● Mounting height H (mm): 177 ● Mounting seat A (mm): 110 ● Mounting seat B (mm): 110 ● Mounting pitch X (mm): 75-90 ● Mounting pitch Y (mm): 75-90 ● Mounting hole diameter P (mm): 11 ● Free-swivel ● Plate type ● Radial ball bearing included Materials/Finish: ● Metal fittings: High-tensile material (steel) ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: High-tensile material (steel) wheels, urethane (green)
