TRUSCO Caster High Tensile Pressed Rubber Wheel with Fixing Bracket φ130 HTTK-130 1 pc

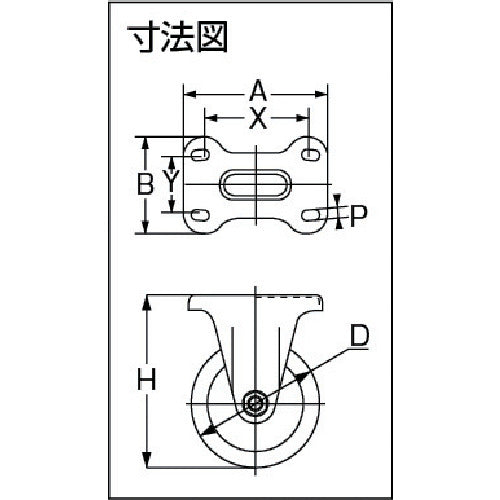

Catalog number: HTTK-130 Features: *The durability of the rotating parts, which are subject to wear, has increased by more than four times by using high-tensile materials. (Compared to our previous products) *The use of radial bearings has improved noise reduction. *The use of high-tensile materials has reduced the weight. Uses: ● For mounting on transport carts, etc. Specifications: ● Wheel diameter D (mm): 130 ● Type: Fixed type ● Allowable load (daN): 180 ● Allowable load (kgf): 184 ● Wheel width (mm): 38 ● Mounting height H (mm): 177 ● Mounting seat A (mm): 138 ● Mounting seat B (mm): 92 ● Mounting pitch X (mm): 100-112 ● Mounting pitch Y (mm): 53-56 ● Mounting hole diameter P (mm): 11 ● Caster diameter (mm): 130 ● Mounting seat (mm): 138 x 92 ● Mounting pitch (mm): 100-112 x 53-56 ● Wheel material: Rubber ● Fixed type ● Plate type ● Radial ball bearing included Material/Finish: ● Metal fittings: High-tensile material (steel) ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: High-tensile material (steel) wheels, rubber
