TRUSCO Caster TYG Series Fixed Rubber Wheel 32mm TYGK-32 1 pc

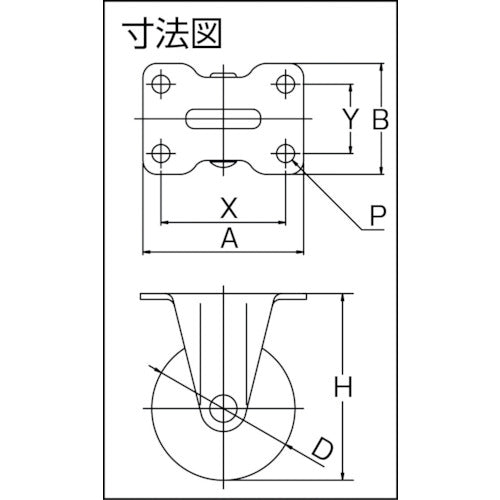

Catalog number: TYGK-32 Features: ●Standard small caster, available in the smallest size. Applications: ●Wide range of applications, including office equipment, furniture, transport vehicles, and lightweight racks. Specifications: ●Wheel diameter D (mm): 32 ●Type: Fixed ●Allowable load (daN): 12 ●Allowable load (kgf): 12.2 ●Wheel width (mm): 14 ●Mounting height H (mm): 42 ●Mounting seat A (mm): 36 ●Mounting seat B (mm): 20 ●Mounting pitch X (mm): 29 (2 holes) ●Mounting hole diameter P (mm): 4.2 ●Mounting pitch X×Y (mm): 29 (2 holes) ●Plate type ●Fixed type ●Single bearing included Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Rubber Notes: ●There are two mounting holes.
