TRUSCO Caster TYG Series Swivel SP Elastomer Wheel 65mm TYGEB-65 1 pc

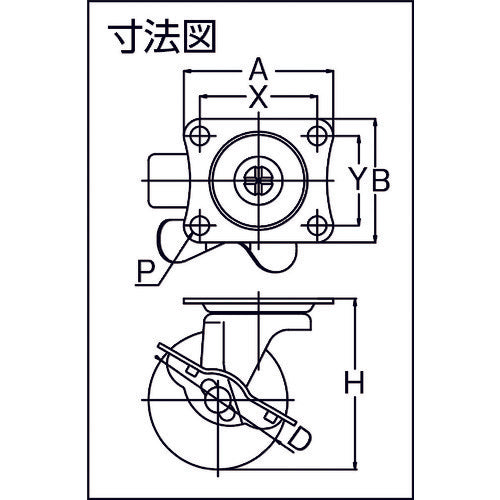

Catalogue number: TYGEB-65 Features: ●Standard small caster, available in a range of sizes from the smallest. Specifications: ●Wheel diameter D (mm): 65 ●Type: Swivel (with stopper) ●Allowable load (daN): 40 ●Allowable load (kgf): 40.8 ●Wheel width (mm): 27 ●Mounting height H (mm): 80 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 58 ●Mounting pitch X (mm): 55 ●Mounting pitch Y (mm): 42 ●Mounting hole diameter P (mm): 8.8 ●Plate type ●Swivel (with stopper) ●Single bearing included Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Elastomer
