TRUSCO Caster TYG Series Swivel Elastomer Wheel 32mm TYGE-32 1 pc

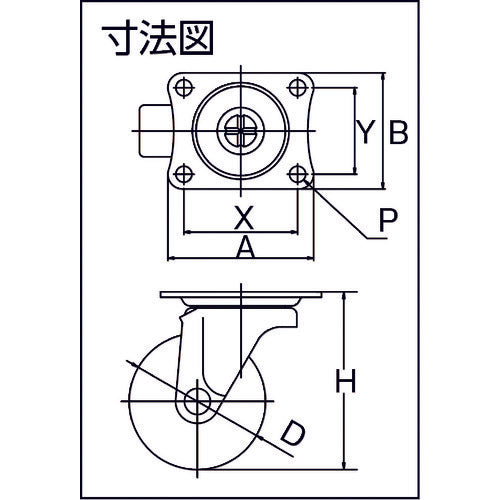

Catalogue number: TYGE-32 Features: ●Standard small caster, available in a range of sizes from the smallest. Specifications: ●Wheel diameter D (mm): 32 ●Type: Swivel ●Allowable load (daN): 12 ●Allowable load (kgf): 12.2 ●Wheel width (mm): 14 ●Mounting height H (mm): 42 ●Mounting seat A (mm): 38 ●Mounting seat B (mm): 32 ●Mounting pitch X (mm): 30 ●Mounting pitch Y (mm): 24 ●Mounting hole diameter P (mm): 4.2 ●Plate type ●Swivel type ●Single bearing included Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Elastomer
