TRUSCO Caster TYS Series All Stainless Steel Fixed Rubber Wheel 125mm TYSK-SUS-125 1 pc

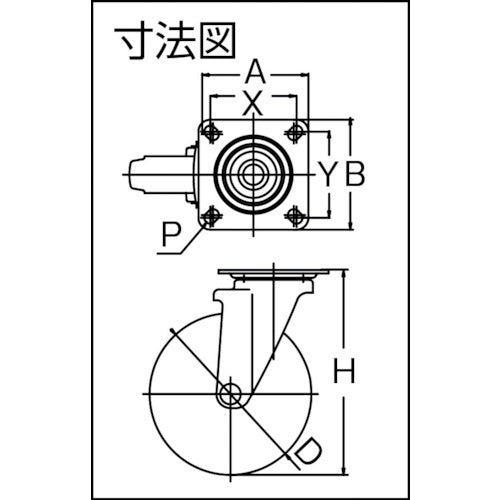

Catalog number: TYSK-SUS-125 Features: ● All stainless steel with excellent water resistance and corrosion resistance. ● All stainless steel metal fittings make it suitable for use around water. ● Standard caster for light to medium loads with excellent travelling ability and load capacity. A caster with standard dimensions that is widely used for transport carts, roll box pallets, and other general work. Applications: ● For transport carts, roll box pallets, and other general work. Specifications: ● Wheel diameter D (mm): 125 ● Type: Fixed type ● Allowable load (daN): 150 ● Allowable load (kgf): 153.0 ● Wheel width (mm): 34 ● Mounting height H (mm): 168 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 94 ● Mounting pitch X (mm): 100-112 ● Mounting pitch Y (mm): 53-56 ● Mounting hole diameter P (mm): 11 ● Plate type ● Fixed type Material/Finish: ● Metal fittings: Stainless steel ● Wheels: Nylon wheel rubber
