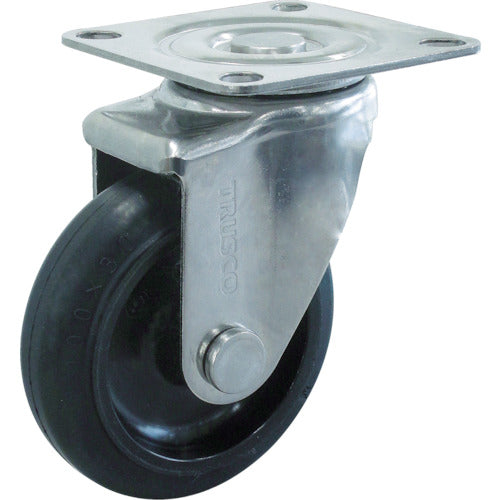

TRUSCO Caster TYS Series All Stainless Steel Swivel Rubber Wheel 75mm TYS-SUS-75 1 pc

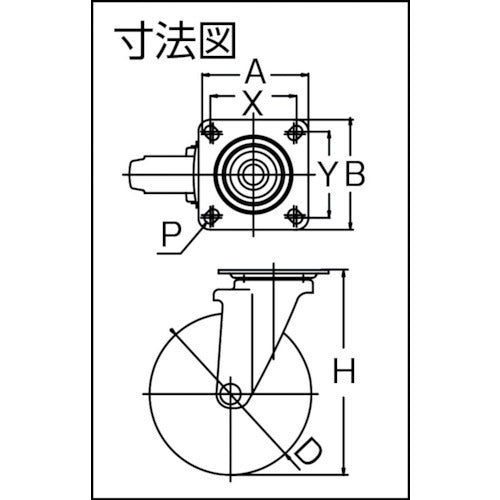

Catalogue number: TYS-SUS-75 Features: ● Made entirely of stainless steel with excellent water and corrosion resistance. ● All metal fittings are stainless steel, making it suitable for use around water. ● Standard caster for light to medium loads with excellent travelling ability and load capacity. A caster of standard dimensions widely used for transport carts, roll box pallets, and other general work. ● 125mm and 150mm models have stainless steel bearings for smooth wheel rotation. Applications: ● For transport carts, roll box pallets, and other general work. Specifications: ● Wheel diameter D (mm): 75 ● Type: Free-swivel ● Allowable load (daN): 60 ● Allowable load (kgf): 61.2 ● Wheel width (mm): 25 ● Mounting height H (mm): 93 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 58 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 42 ● Mounting hole diameter P (mm): 8.8 ● Plate type ● Free-swivel ● Free-swivel part: With double bearings Materials/Finish: ● Metal fittings: Stainless steel ● Wheels: Rubber
