TRUSCO Caster TYS Series All Stainless Steel Swivel SP Included Rubber Wheel 100mm TYSB-SUS-100 1 pc

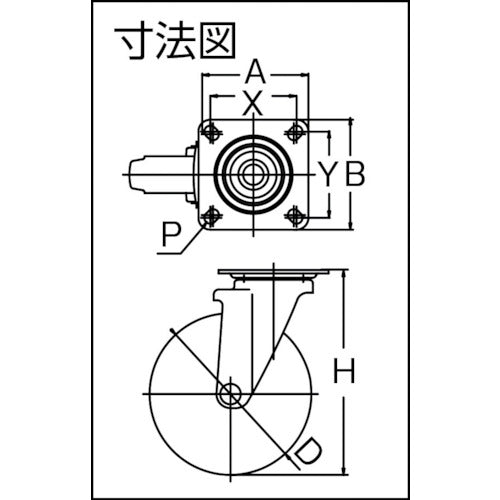

Catalogue number: TYSB-SUS-100 Features: ● Made entirely of stainless steel with excellent water and corrosion resistance. ● All metal fittings are stainless steel, making it suitable for use around water. ● Standard caster for light to medium loads with excellent travelling ability and load capacity. A caster of standard dimensions widely used for transport carts, roll box pallets, and other general work. ● 125mm and 150mm models have stainless steel bearings for smooth wheel rotation. Applications: ● For transport carts, roll box pallets, and other general work. Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-swivel (with stopper) ● Allowable load (daN): 120 ● Allowable load (kgf): 122.4 ● Wheel width (mm): 30 ● Mounting height H (mm): 132 ● Mounting seat A (mm): 90 ● Mounting seat B (mm): 90 ● Mounting pitch X (mm): 68-71 ● Mounting pitch Y (mm): 68-71 ● Mounting hole diameter P (mm): 11 ● Plate type ● Free-swivel (with stopper) ● Free swivel part: With double bearings Materials/Finish: ● Metal fittings: Stainless steel ● Wheels: Nylon wheel rubber
