TRUSCO Caster TYS Series Hard Rubber Caster Φ75 Swivel TYSG-75RH 1 pc

TRUSCO Caster TYS Series Hard Rubber Caster Φ75 Swivel TYSG-75RH 1 pc

JAN：4989999687187 　
Optional parts for transport vehicles Transport cart Transport vehicle options Transportation Equipment TRUSCO Caster 2
¥649
¥649
Sale Sold out
Shipping calculated at checkout.

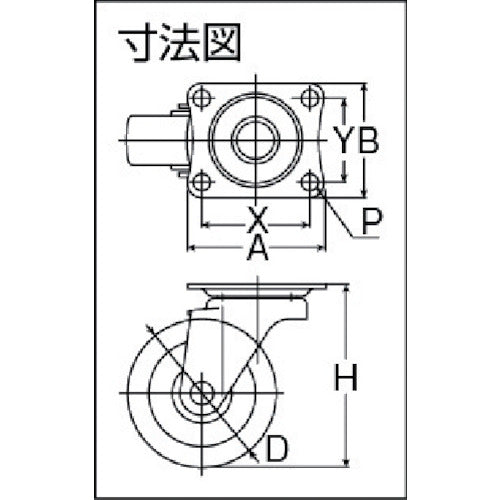

Catalog number: TYSG-75RH Specifications: ● Caster diameter (mm): 75 ● Mounting base (mm): 70 x 58 ● Mounting pitch (mm): 55 x 42 ● Wheel material: Rubber ● Allowable load (kgf): 61.2 ● Wheel diameter D (mm): 75 ● Wheel width (mm): 25 ● Mounting pitch X (mm): 55 ● Mounting hole diameter P (mm): 8.8 ● Mounting height H (mm): 93 ● Mounting base B (mm): 58 ● Mounting pitch Y (mm): 42 ● Mounting base A (mm): 70 ● Allowable load (daN): 60 ● Compatible mounting bracket: CA-75 ● When using casters attached to a shelf, the allowable load is 80%. Example calculation: Allowable load 61 (kgf) x 4 x 0.8 = 195 (kgf)/unit or less Material/Finish: ● Bracket: Steel ● Wheel: Rubber
