TRUSCO Caster TYS Series Fixed Rubber Wheel 125mm TYSK-125 1 pc

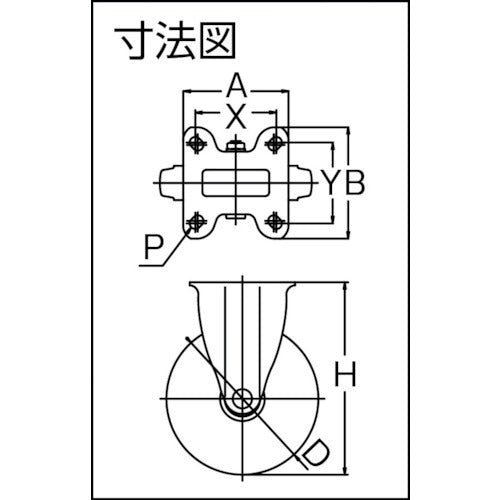

Catalog number: TYSK-125 Features: ●Standard caster for light and medium loads with excellent travelling ability and load capacity. A caster with standard dimensions that is widely used for transport carts, roll box pallets, and other general work. ●Double bearings are used for the swivel section. Applications: ●For transport carts, roll box pallets, and other general work. Specifications: ●Wheel diameter D (mm): 125 ●Type: Fixed type ●Allowable load (daN): 150 ●Allowable load (kgf): 153.0 ●Wheel width (mm): 38 ●Mounting height H (mm): 168 ●Mounting seat A (mm): 137 ●Mounting seat B (mm): 93 ●Mounting pitch X (mm): 100-112 ●Mounting pitch Y (mm): 53-56 ●Mounting hole diameter P (mm): 11.0 ●Plate type ●Fixed type Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Rubber
