TRUSCO Caster TYS Series Fixed Rubber Wheel 50mm TYSK-50 1 pc

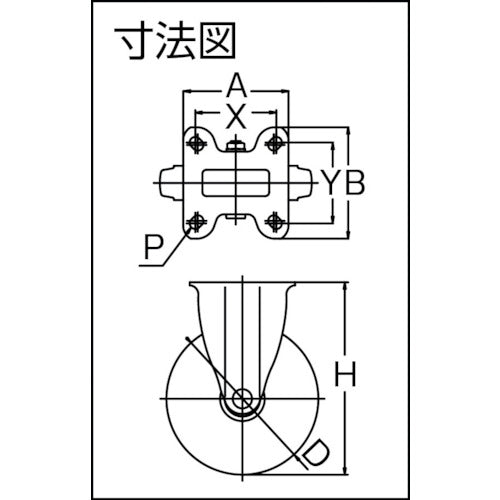

Catalog number: TYSK-50 Features: ● Standard caster for light and medium loads with excellent travelling ability and load capacity. A caster of standard dimensions widely used for transport carts, roll box pallets, and other general work. (Caster diameter 50-75mm, no replacement wheels) ● Double bearings are used for the swivel section. Applications: ● For transport carts, roll box pallets, and other general work. Specifications: ● Wheel diameter D (mm): 50 ● Type: Fixed type ● Allowable load (daN): 50 ● Allowable load (kgf): 51.0 ● Wheel width (mm): 28 ● Mounting height H (mm): 70 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 47 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 28 ● Mounting hole diameter P (mm): 8.8 ● Plate type ● Fixed type Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Rubber
