TRUSCO Caster TYS Series Fixed Rubber Wheel 65mm TYSK-65 1 pc

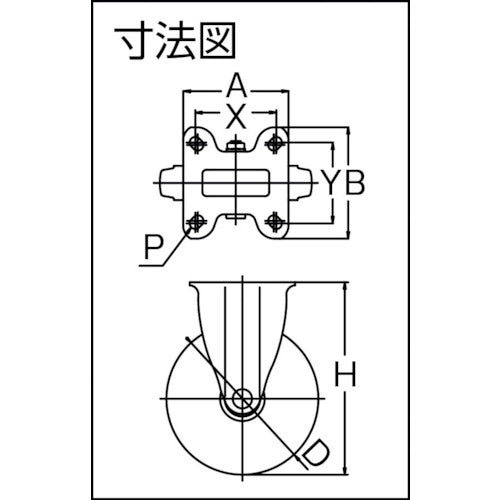

Catalog number: TYSK-65 Features: ●Standard caster for light and medium loads with excellent travelling ability and load capacity. A caster of standard dimensions widely used for transport carts, roll box pallets, and other general work. (Caster diameter 50-75mm, no replacement wheels) ●Double bearings are used for the swivel section. Applications: ●For transport carts, roll box pallets, and other general work. Specifications: ●Wheel diameter D (mm): 65 ●Type: Fixed type ●Allowable load (daN): 50 ●Allowable load (kgf): 51.0 ●Wheel width (mm): 25 ●Mounting height H (mm): 85 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 47 ●Mounting pitch X (mm): 55 ●Mounting pitch Y (mm): 28 ●Mounting hole diameter P (mm): 8.8 ●Plate type ●Fixed type Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Rubber
