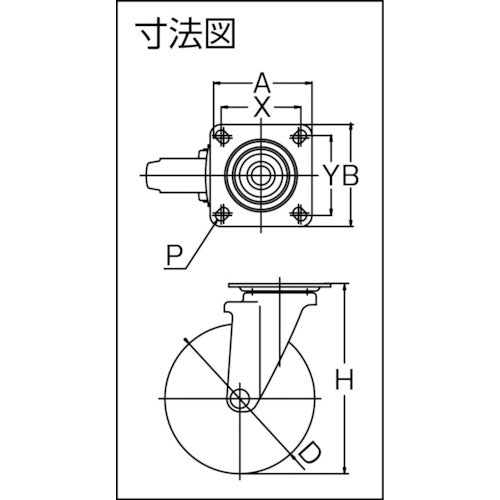

Catalog number: TYSU-125 Features: ●Standard caster for light and medium loads with excellent travelling ability and load capacity. ●Standard size caster widely used for transport carts, roll box pallets, and other general work. Applications: ●For transport carts, roll box pallets, and other general work. Specifications: ●Wheel diameter D (mm): 125 ●Type: Swivel ●Allowable load (daN): 130 ●Allowable load (kgf): 132.6 ●Wheel width (mm): 40 ●Mounting height H (mm): 168 ●Mounting seat A (mm): 102 ●Mounting seat B (mm): 102 ●Mounting pitch X (mm): 75-80 ●Mounting pitch Y (mm): 75-80 ●Mounting hole diameter P (mm): 11.0 ●Plate type ●Swivel type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Nylon wheel, urethane (gray)
