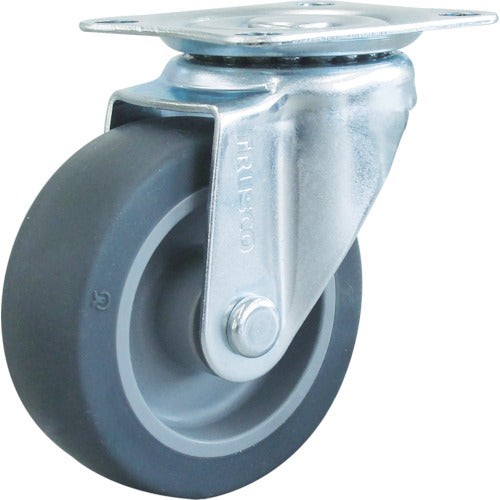

TRUSCO Caster TYS Series Swivel Elastomer Wheel 50mm TYSEL-50 1 pc

Catalog number: TYSEL-50 Features: ● The wheels are made of elastomer (caster diameter 50-75mm, no replacement wheels available) and gray rubber (caster diameter 100-150mm, replacement wheels available), so they are less likely to leave marks on the floor. ● A standard caster for light to medium loads with excellent running performance and load capacity. A standard size caster that is widely used for transport carts, roll box pallets, and other general work. ● It has the same elasticity as rubber wheels, and has excellent running performance even on uneven surfaces. Applications: ● For transport carts, roll box pallets, and other general work. Specifications: ● Wheel diameter D (mm): 50 ● Type: Free-swivel ● Allowable load (daN): 35 ● Allowable load (kgf): 35.7 ● Wheel width (mm): 27 ● Mounting height H (mm): 70 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 58 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 42 ● Mounting hole diameter P (mm): 8.8 ● Plate type ● Free-swivel ● Free-swivel part: With double bearings Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, elastomer
