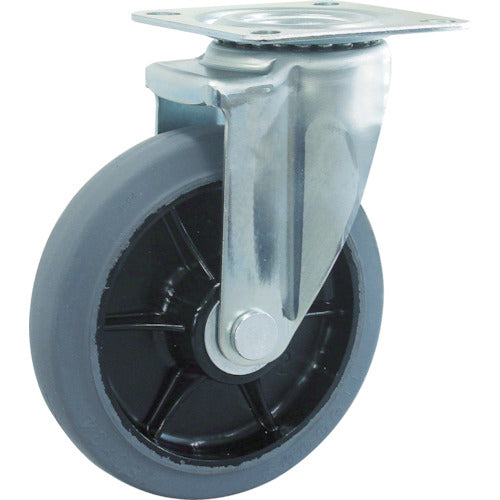

TRUSCO Caster TYS Series Swivel Gray Rubber Wheel 100mm TYS-100G 1 pc

Catalog number: TYS-100G Features: ● The wheels are made of elastomer (caster diameter 50-75mm) and gray rubber (caster diameter 100-150mm), so they are less likely to leave marks on the floor. ● A standard caster for light to medium loads with excellent running performance and load capacity. A caster of standard dimensions that is widely used for transport carts, roll box pallets, and other general work. ● It has the same elasticity as rubber wheels, and has excellent running performance even on uneven surfaces. Applications: ● For transport carts, roll box pallets, and other general work. Specifications: ●Wheel diameter D (mm): 100 ●Type: Free-swivel ●Permissible load (daN): 120 ●Permissible load (kgf): 122.4 ●Wheel width (mm): 32 ●Mounting height H (mm): 132 ●Mounting seat A (mm): 90 ●Mounting seat B (mm): 90 ●Mounting pitch X (mm): 68-71 ●Mounting pitch Y (mm): 68-71 ●Mounting hole diameter P (mm): 11.0 ●Plate type ●Free-swivel ●Swivel part: With double bearings Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Steel wheels, elastomer Note: ●There are no replacement wheels for 50-75mm.
