TRUSCO Caster TYS Series Swivel Rubber Wheel 150mm TYS-150 1 pc

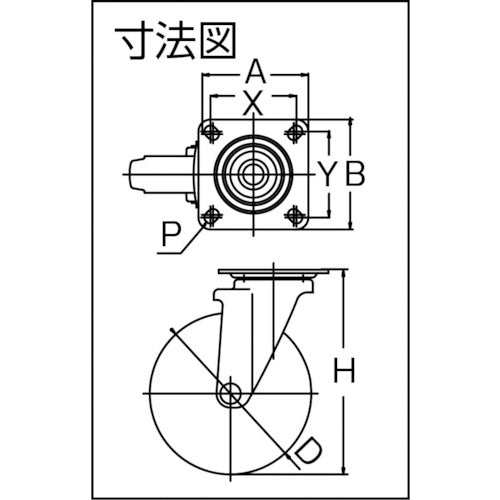

Catalogue number: TYS-150 Features: ●Standard caster for light to medium loads with excellent travelling ability and load capacity. This is a caster with standard dimensions that is widely used for transport carts, roll box pallets, and other general work. ●Double bearings are used for the swivel section. Applications: ●For transport carts, roll box pallets, and other general work. Specifications: ●Wheel diameter D (mm): 150 ●Type: Swivel ●Allowable load (daN): 160 ●Allowable load (kgf): 163.2 ●Wheel width (mm): 40 ●Mounting height H (mm): 190 ●Mounting seat A (mm): 102 ●Mounting seat B (mm): 102 ●Mounting pitch X (mm): 75-80 ●Mounting pitch Y (mm): 75-80 ●Mounting hole diameter P (mm): 11.0 ●Plate type ●Swivel section: Double bearing included ●Swivel type Materials/Finish: ●Hardware: Steel ●Hardware surface treatment: Trivalent chromium finish ●Wheels: Rubber
