TRUSCO Caster TYS Series Swivel Rubber Wheel 65mm TYS-65 1 pc

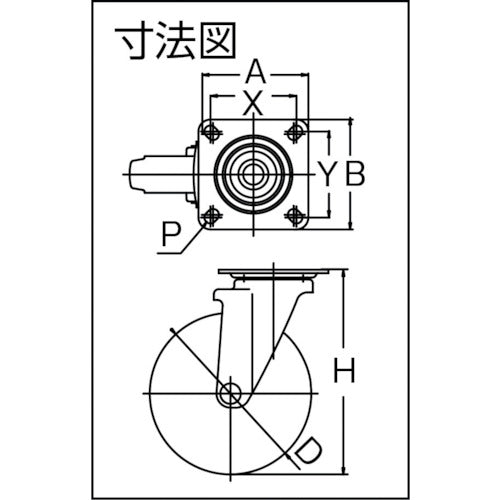

Catalog number: TYS-65 Features: ● Standard caster for light and medium loads with excellent travelling ability and load capacity. This is a caster with standard dimensions that is widely used for transport carts, roll box pallets, and other general work. (Caster diameter 50-75mm, no replacement wheels) ● The swivel part uses double bearings. Applications: ● For transport carts, roll box pallets, and other general work. Specifications: ● Wheel diameter D (mm): 65 ● Type: Free-swiveling ● Allowable load (daN): 50 ● Allowable load (kgf): 51.0 ● Wheel width (mm): 25 ● Mounting height H (mm): 85 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 58 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 42 ● Mounting hole diameter P (mm): 8.8 ● Plate type ● Free-swiveling part: Double bearing included ● Free-swiveling Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Rubber
