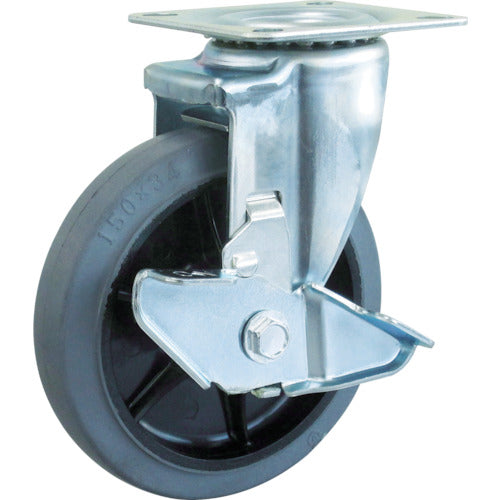

TRUSCO Caster TYS Series Swivel SP Included Gray Rubber Wheel 100mm TYSB-100G 1 pc

Catalog number: TYSB-100G Features: ● The wheels are made of elastomer (caster diameter 50-75 mm) and gray rubber (caster diameter 100-150 mm), so they are less likely to leave marks on the floor. ● A standard caster for light to medium loads with excellent running performance and load capacity. A standard size caster widely used for transport carts, roll box pallets, and other general work. ● It has the same elasticity as rubber wheels, and has excellent running performance even on uneven surfaces. Applications: ● For transport carts, roll box pallets, and other general work. Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-swivel type (with stopper) ● Allowable load (daN): 120 ● Allowable load (kgf): 122.4 ● Wheel width (mm): 32 ● Mounting height H (mm): 132 ● Mounting seat A (mm): 90 ● Mounting seat B (mm): 90 ● Mounting pitch X (mm): 68-71 ● Mounting pitch Y (mm): 68-71 ● Mounting hole diameter P (mm): 11.0 ● Plate type ● Free-swivel type (with stopper) ● Free swivel part: With double bearings Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, elastomer
