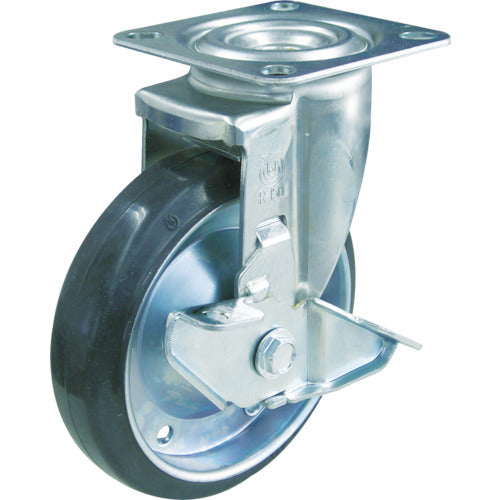

TRUSCO Caster TYS Series Swivel SP Included Rubber Wheel 125mm TYSB-125 1 pc

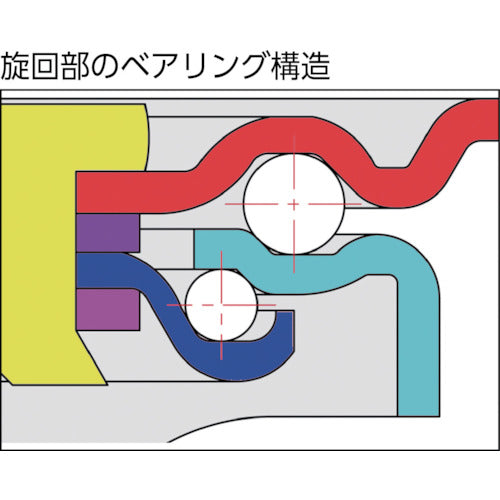

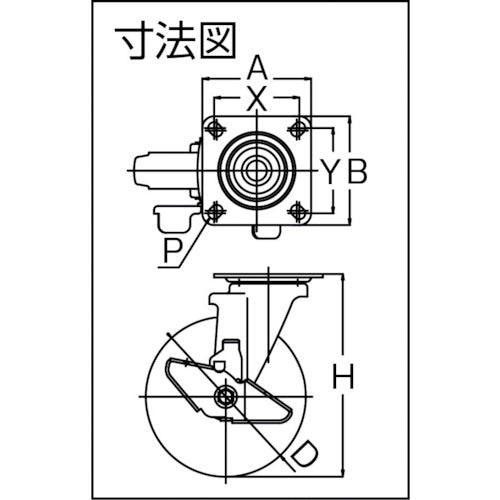

Catalog number: TYSB-125 Features: ●Standard caster for light to medium loads with excellent travelling ability and load capacity. A caster with standard dimensions widely used for transport carts, roll box pallets, and other general work. ●Double bearings are used for the swivel section. Applications: ●For transport carts, roll box pallets, and other general work. Specifications: ● Wheel diameter D (mm): 125 ● Type: Free-swivel type (with stopper) ● Allowable load (daN): 150 ● Allowable load (kgf): 153.0 ● Wheel width (mm): 38 ● Mounting height H (mm): 168 ● Mounting seat A (mm): 102 ● Mounting seat B (mm): 102 ● Mounting pitch X (mm): 75-80 ● Mounting pitch Y (mm): 75-80 ● Mounting hole diameter P (mm): 11.0 ● Plate type ● Free-swivel part: Double bearing included ● Free-swivel type (with stopper) Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Rubber
