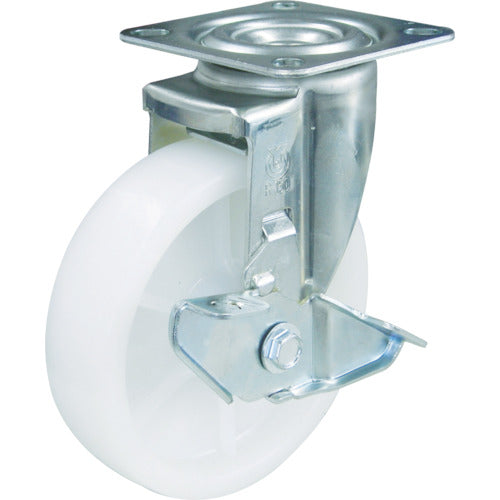

TRUSCO Caster TYS Series Swivel SP Included Nylon Wheel 125mm TYSNYB-125 1 pc

Catalog number: TYSNYB-125 Features: ●Standard caster for light and medium loads with excellent travelling ability and load capacity. ●Standard size caster widely used for transport carts, roll box pallets, and other general work. Applications: ●For transport carts, roll box pallets, and other general work. Specifications: ●Wheel diameter D (mm): 125 ●Type: Swivel (with stopper) ●Allowable load (daN): 150 ●Allowable load (kgf): 153.0 ●Wheel width (mm): 40 ●Mounting height H (mm): 168 ●Mounting seat A (mm): 102 ●Mounting seat B (mm): 102 ●Mounting pitch X (mm): 75-80 ●Mounting pitch Y (mm): 75-80 ●Mounting hole diameter P (mm): 11.0 ●Plate type ●With swivel stopper Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Nylon
