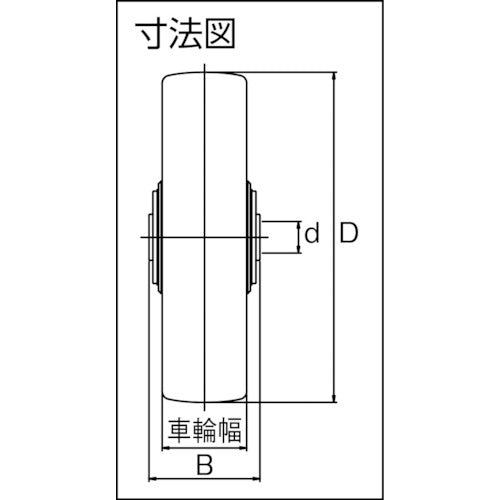

Catalog number: TYSUW-125 Features: ●Standard caster for light to medium loads with excellent travelling ability and load capacity. ●Standard size caster widely used for transport carts, roll box pallets, and other general work. Applications: ●For transport carts, roll box pallets, and other general work. Specifications: ●Wheel diameter D (mm): 125 ●Allowable load (daN): 150 ●Allowable load (kgf): 153.0 ●Wheel width (mm): 40 ●Boss width B (mm): 55 ●Hole diameter d (mm): 12 ●Double bearing included Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Nylon wheel, urethane (gray)
