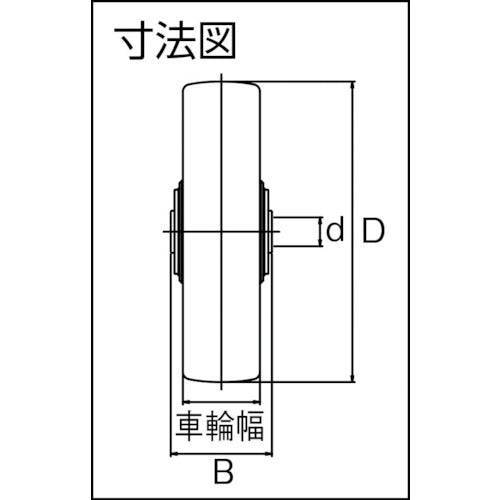

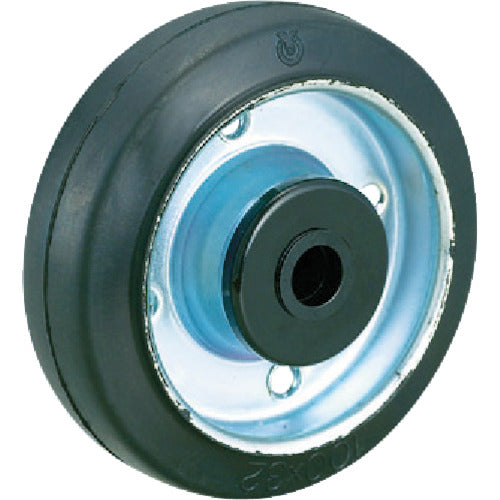

Catalogue number: TYSW-150 Features: ●Standard caster for light to medium loads with excellent travelling ability and load capacity. A caster with standard dimensions widely used for transport carts, roll box pallets, and other general work. Applications: ●For transport carts, roll box pallets, and other general work. Specifications: ●Wheel diameter D (mm): 150 ●Allowable load (daN): 160 ●Allowable load (kgf): 163.2 ●Wheel width (mm): 40 ●Boss width B (mm): 55 ●Hole diameter d (mm): 12.2 ●Hole diameter d (mm): 12.2 ●Resin bushing included Material/Finish: ●Steel wheel, rubber
