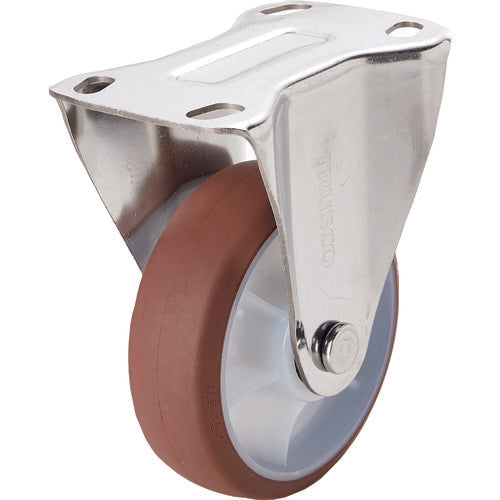

TRUSCO Caster TYS Series All Stainless Steel Fixed Urethane Φ100 TYSUK-SUS-100 1 pc

Catalogue number: TYSUK-SUS-100 Features: ●The metal fittings are stainless steel and the wheels are made of nylon urethane wheels, providing excellent corrosion and water resistance. ●The exterior is a clean color. ●The 100, 125, and 150Φ models are equipped with bearing covers on the wheels to prevent foreign matter from entering. ●The 100, 125, and 150Φ models have stainless steel bearings for smooth wheel rotation. Applications: ●For use as a trolley for transporting food, medical equipment, etc. Specifications: ● Wheel diameter D (mm): 100 ● Type: Fixed type ● Allowable load (daN): 100 ● Allowable load (kgf): 102.0 ● Wheel width (mm): 32 ● Mounting height H (mm): 132 ● Mounting seat A (mm): 90 ● Mounting seat B (mm): 90 ● Mounting pitch X (mm): 80-90 ● Mounting pitch Y (mm): 45-50 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 1000 ● Wheel material: Nylon wheel urethane ● Caster diameter (mm): 100 ● Mounting seat (mm): 110 x 75 ● Mounting pitch (mm): 80-90 x 45-50 ● Plate type ● Stainless steel urethane wheel with radial bearing Material / Finish: ● Metal fittings: Stainless steel (SUS304) ● Wheels: Nylon wheel, urethane (brown)
