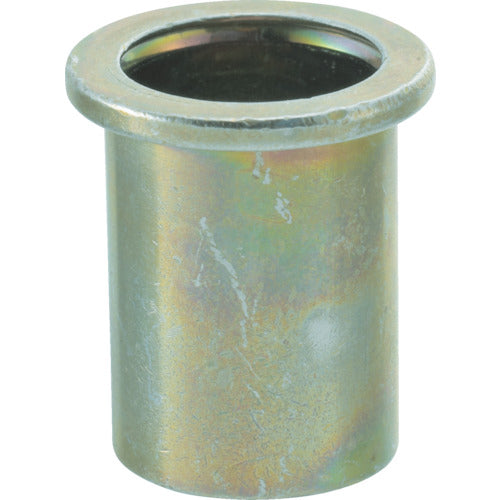

TRUSCO Crimp Nut Flat Head Stainless Steel Plate Thickness 4.0 M8 x 1.25 100 TBN-8M40SS-C 1 Box

Catalog number: TBN-8M40SS-C Features: ●Can be installed quickly and easily even in places where hands cannot reach. ●Can be installed on thin plates and plywood where welding and tapping are not possible. ●Can be installed firmly and reliably without damaging the base material. Applications: ●Automobile and vehicle related: buses, trucks, container cars, automobiles, railway vehicles, etc. ●Housing related: sashes, curtain walls, gates, fences, kitchen equipment, steel furniture, etc. ●Home appliances related: refrigerators, microwaves, washing machines, etc. Specifications: ●Crimping plate thickness (mm): 2.5 to 4.0 ●Pilot hole diameter (mm): 11.1 ●Compatible screws: M8 x 1.25 ●Nut outer diameter (mm): 11 ●Total length (mm): 18.0 ●Flange thickness (mm): 1.5 ●Pack quantity (pcs): 100 ●Head shape: flat head ●Flat head ●Boxed Material/Finish: ●Stainless steel (SUS303)
