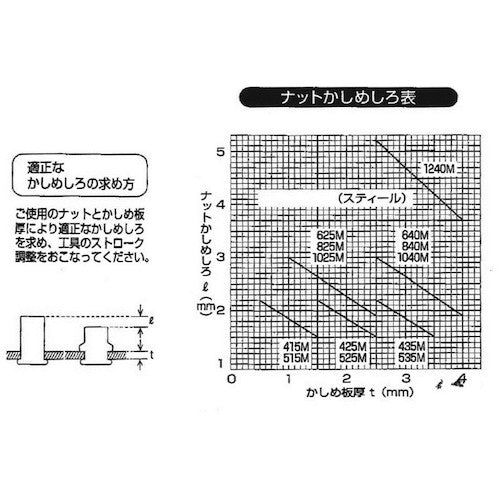

Catalog number: T-BNF-8M25S Features: ●Can be installed quickly and easily even in places where hands cannot reach. ●Can be installed on thin plates and plywood where welding and tapping are not possible. ●Can be installed firmly and reliably without damaging the base material. Applications: ●Housing-related: sashes, curtain walls, gates, fences, kitchen equipment, steel furniture, etc. ●Automobile and vehicle-related: buses, trucks, container cars, automobiles, railway cars, etc. ●Home appliances-related: refrigerators, microwaves, washing machines, etc. Specifications: ●Crimping plate thickness (mm): 1.0 to 2.5 ●Pilot hole diameter (mm): 11.1 ●Compatible thread: M8 x 1.25 ●Nut outer diameter (mm): 11 ●Total length (mm): 15.5 ●Flange thickness (mm): 0.5 ●Thin head ●Packed Material/Finish: ●Steel (SWCH)
