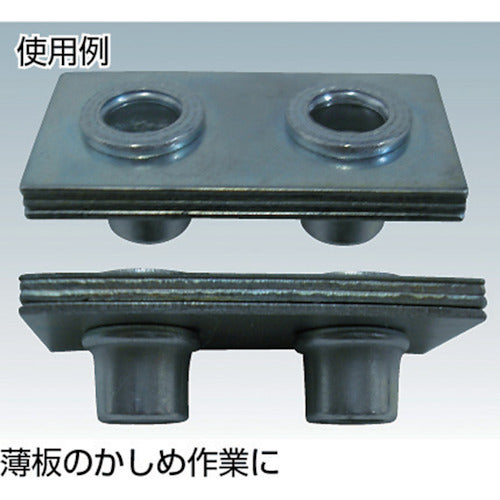

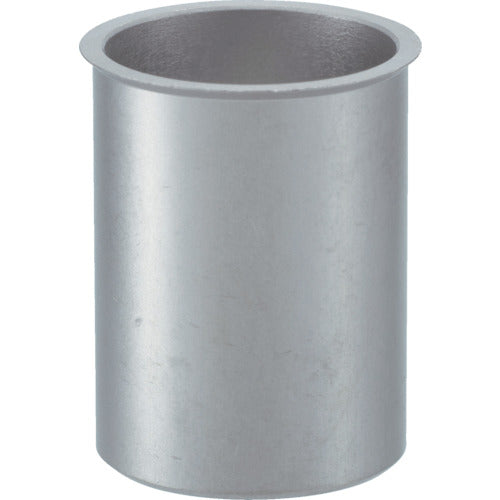

Catalog number: TBNF-5M25SS-C Features: ●Can be installed quickly and easily even in places where hands cannot reach. ●Can be installed on thin plates and plywood where welding and tapping are not possible. ●Can be installed firmly and reliably without damaging the base material. Applications: ●Housing-related: sashes, curtain walls, gates, fences, kitchen equipment, steel furniture, etc. ●Automobile and vehicle-related: buses, trucks, container cars, automobiles, railway cars, etc. ●Home appliances-related: refrigerators, microwaves, washing machines, etc. Specifications: ●Crimping plate thickness (mm): 1.5 to 2.5 ●Drill hole diameter (mm): 7.1 ●Compatible screws: M5 x 0.8 ●Nut outer diameter (mm): 7 ●Total length (mm): 12 ●Flange thickness (mm): 0.5 ●Pack quantity (pcs): 100 ●Head shape: Thin head ●Thin head ●Boxed Material/Finish: ●Stainless steel (SUS303)
