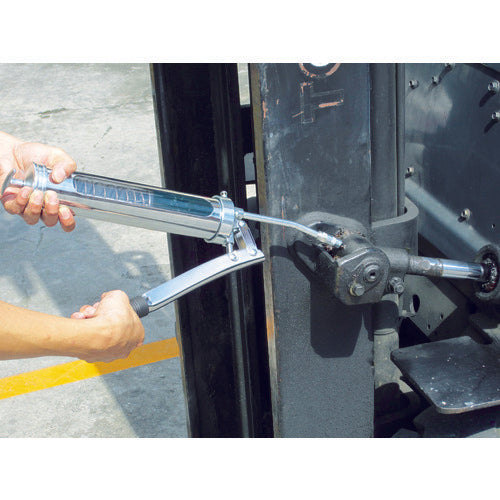

Catalog number: PH-400TM Features: ● A skeleton type that allows you to see the remaining amount of grease at a glance. Specifications: ● Amount discharged per time (cc): 1.2 ● Nozzle length (mm): 160 ● Oil tank diameter (mm): 59 ● Capacity (cc): 500 ● Overall length (mm): 350 ● Maximum pressure (MPa): 47 ● Nozzle connection screw: Rc1/8 ● Maximum direct loading capacity (cc): 500 ● Can use hand-filled grease ● Nozzle connection screw: Rc1/8 ● Applicable grease: Viscosity No.1, No.2 Material/Finish: ● Steel ● Zinc alloy ● PE Set contents/Accessories: ● Chuck type nozzle
