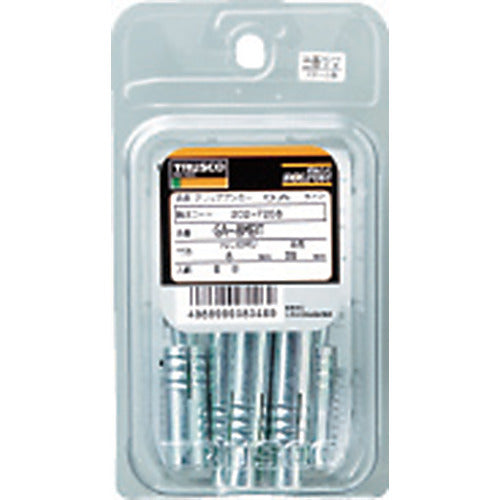

Catalog number: GA-10MBT Features: ●The construction surface is flat, so the anchors do not get in the way even after the equipment (facilities) are removed. Applications: ●Lightweight ceiling construction, temporary scaffolding installation, concrete formwork construction, wiring and piping hanging hardware installation, etc. ●The construction surface is flat, so the anchors do not get in the way even after the equipment (facilities) are removed. Specifications: ●Screw size: M10 ●Outer diameter (mm): 14.0 ●Total length (mm): 40 ●Screw length (mm): 15 ●Drill diameter (mm): 14.5 ●Maximum tensile load (kN): 14.9 ●Pilot hole diameter (mm): 14.5 ●Drilling depth (mm): 45 ●Packed ●Compatible hand holder: GA-30H Material/Finish: ●Steel ●Surface treatment: Trivalent chromate treatment Note: ●The maximum tensile load is the value when the concrete strength Fc=21N/[[MM2]]. ●A dedicated hand holder is required for construction.
