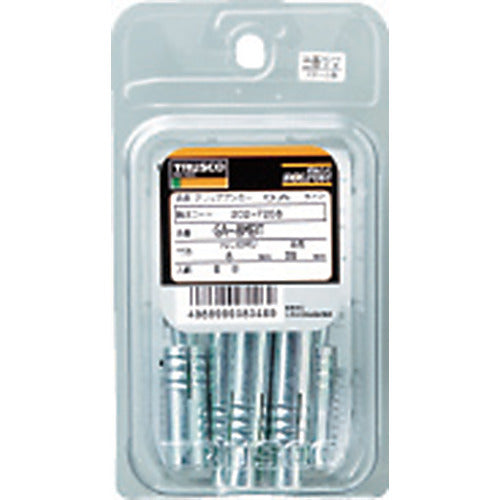

TRUSCO Grip Anchor Steel M16X60 2-Pack (Concrete Anchor/Main Body Drive-in Type) GA-16MBT 1 PK

Catalog number: GA-16MBT Features: ●The construction surface is flat, so the anchors do not get in the way even after the equipment (facilities) are removed. Applications: ●Lightweight ceiling construction, temporary scaffolding installation, concrete formwork construction, wiring and piping hanging hardware installation, etc. ●The construction surface is flat, so the anchors do not get in the way even after the equipment (facilities) are removed. Specifications: ●Screw size: M16 ●Outer diameter (mm): 21.5 ●Total length (mm): 60 ●Screw length (mm): 25 ●Drill diameter (mm): 22.0 ●Maximum tensile load (kN): 33.3 ●Pilot hole diameter (mm): 22.0 ●Drilling depth (mm): 68 ●Packed ●Compatible hand holder: GA-50H Material/Finish: ●Steel ●Surface treatment: Trivalent chromate treatment Note: ●The maximum tensile load is the value when the concrete strength Fc=21N/[[MM2]]. ●A dedicated hand holder is required for construction.
