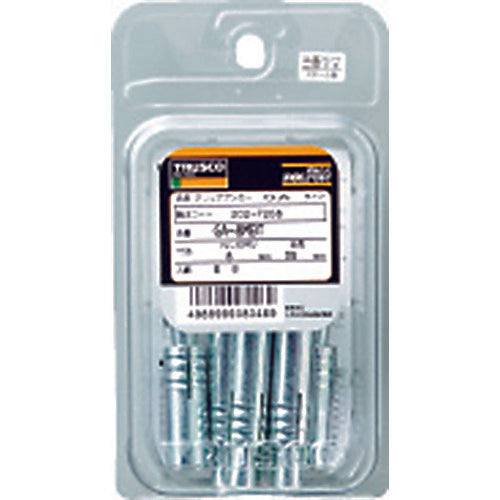

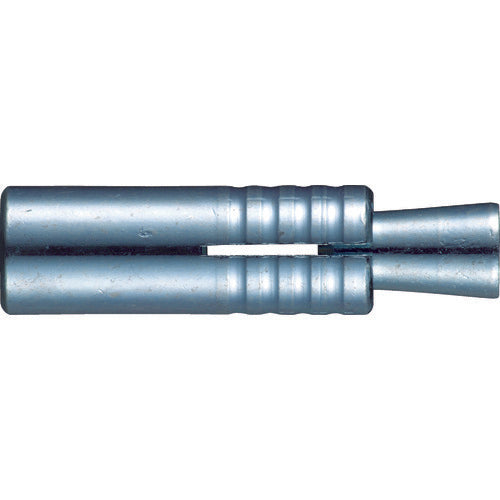

TRUSCO Grip Anchor Steel M8X35 6-Pack (Concrete Anchor/Main Body Drive-in Type) GA-8MBT 1 PK

Catalog number: GA-8MBT Features: ●The construction surface is flat, so the anchors do not get in the way even after the equipment (facilities) are removed. Applications: ●Lightweight ceiling construction, temporary scaffolding installation, concrete formwork construction, wiring and piping hanging hardware installation, etc. ●The construction surface is flat, so the anchors do not get in the way even after the equipment (facilities) are removed. Specifications: ●Screw size: M8 ●Outer diameter (mm): 12.0 ●Total length (mm): 35 ●Screw length (mm): 13 ●Drill diameter (mm): 12.5 ●Maximum tensile load (kN): 12.7 ●Pilot hole diameter (mm): 12.5 ●Drilling depth (mm): 39 ●Packed ●Compatible hand holder: GA-25H Material/Finish: ●Steel ●Surface treatment: Trivalent chromate treatment Note: ●The maximum tensile load is the value when the concrete strength Fc=21N/[[MM2]]. ●A dedicated hand holder is required for construction.
