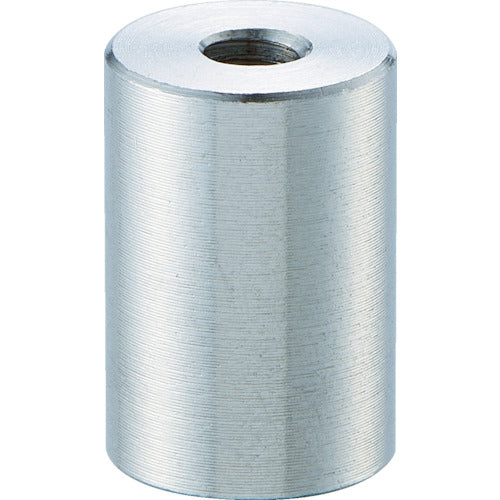

TRUSCO Samarium Cobalt Magnet Holder Φ13XH10 TSMGH-13 1 pc

Catalog number: TSMGH-13 Features: ●This magnet holder combines the heat resistance (250℃) of samarium cobalt magnets with strong magnetic force. ●High versatility and can be used for a variety of purposes. Applications: ●For embedding in jigs and tools and for various adsorption purposes. Specifications: ●Adhesive force (N): 53 ●Outer diameter (mm): 13 ●Height (mm): 10 ●Magnet diameter (mm): 10 ●Magnet height (mm): 3 ●Mounting screw: M5×0.8 Depth 6.5 ●Maximum operating temperature: 250℃ Materials/Finish: ●Magnet: Samarium cobalt magnet ●Body: Steel ●Surface treatment: Nickel plating Caution: ●Pay attention to the depth of the screw fastening. ●The magnet may come off if screwed in too deeply.
