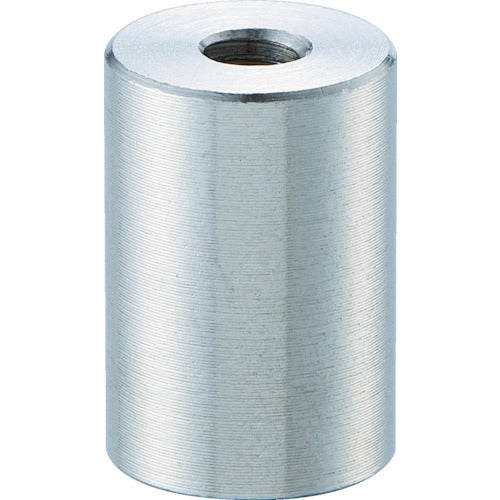

TRUSCO Samarium Cobalt Magnet Holder Φ16XH10 TSMGH-16 1 pc

Catalog number: TSMGH-16 Features: ●This magnet holder combines the heat resistance (250℃) of samarium cobalt magnets with strong magnetic force. ●High versatility and can be used for a variety of purposes. Applications: ●For embedding in jigs and tools and for various adsorption purposes. Specifications: ●Adhesive force (N): 61 ●Outer diameter (mm): 16 ●Height (mm): 10 ●Magnet diameter (mm): 12.5 ●Magnet height (mm): 2 ●Mounting screw: M6×1.0 Depth 7.5 ●Maximum operating temperature: 250℃ Materials/Finish: ●Magnet: Samarium cobalt magnet ●Body: Steel ●Surface treatment: Nickel plating Caution: ●Pay attention to the depth of the screw fastening. ●The magnet may come off if screwed in too deeply.
