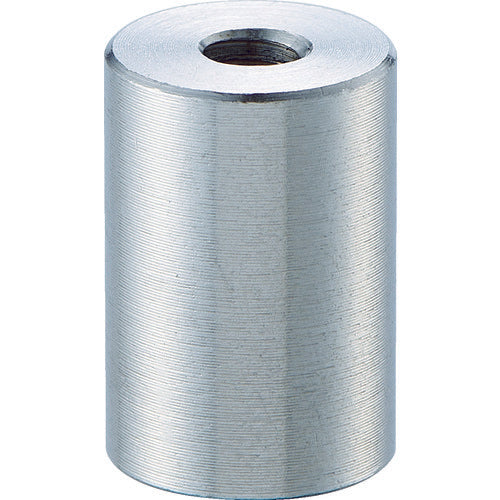

TRUSCO Samarium Cobalt Magnet Holder Φ6XH8 TSMGH-6 1 pc

Catalog number: TSMGH-6 Features: ●This magnet holder combines the heat resistance (250℃) of samarium cobalt magnets with strong magnetic force. ●High versatility and can be used in a variety of applications. Applications: ●For embedding in jigs and tools and various suction purposes. Specifications: ●Suction force (N): 3.8 ●Outer diameter (mm): 6 ●Height (mm): 8 ●Magnet diameter (mm): 4 ●Magnet height (mm): 2 ●Mounting screw: M3×0.5 Depth 5.5 ●Maximum operating temperature: 250℃ Materials/Finish: ●Magnet: Samarium cobalt magnet ●Body: Steel ●Surface treatment: Nickel plating Caution: ●Pay attention to the depth of the screw fastening. ●The magnet may come off if screwed in too deeply.
