TRUSCO Short Plunger M12 Steel Pin T12ST 1 pc
TRUSCO Short Plunger M12 Steel Pin T12ST 1 pc
Regular price
¥356
Regular price
Sale price
¥356
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

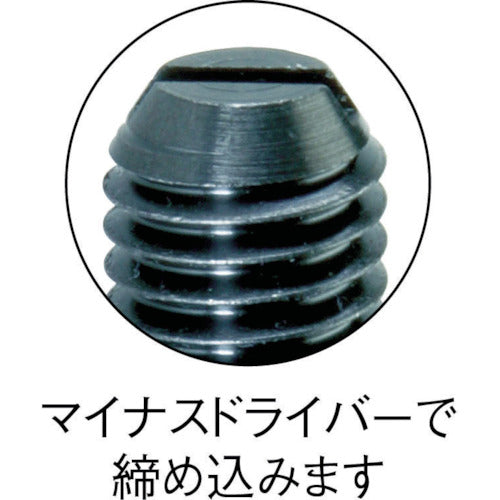

Catalog number: T12ST Features: ● A spring plunger with a negative groove whose body and pin are made of steel. Applications: ● Used for positioning, fixing, pressing, and pushing away. Specifications: ● Load (N): 22-57 ● Thread dimensions: M12 x 1.75 ● Stroke (mm): 3.5 ● Total length (mm): 22 ● Center pin diameter (mm): 6.2 ● Heat resistance temperature (℃): 250 Material/Finish: ● Body: Steel ● Center pin: Steel, hardened
